Project of the month March 2019:Dual carriage cut-off saw unit for defined fixed lengths

The task:

  • To cut rods to length with a finished piece tolerance of ± 0,05 mm

The solution:

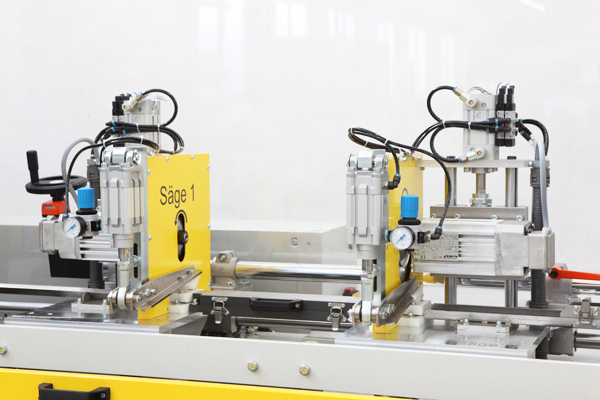

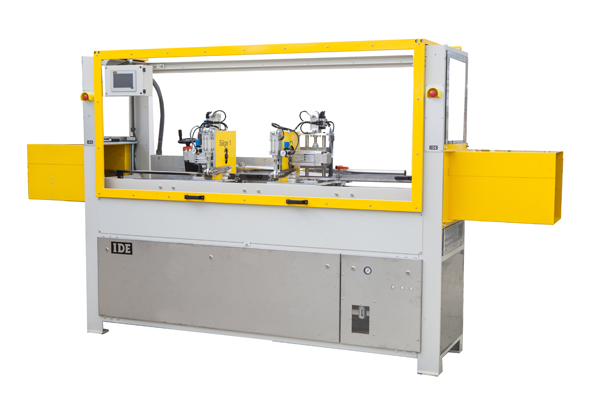

  • Dual carriage cut-off saw ME 50/6.2-D with 2 saw carriages
  • Saw carriage travel distance 400mm, motorized (cycle time 30 cuts/minute)
  • Distance between saw carriages adjustable from 150 – 800mm, incl. digital display
  • Pneumatic saw stroke for profile passage 75x40mm
  • Control of both saw carriages via ME Control 20/4
  • for simultaneous or individual operation
  • Profile-specific guides in front of and between the saw carriages

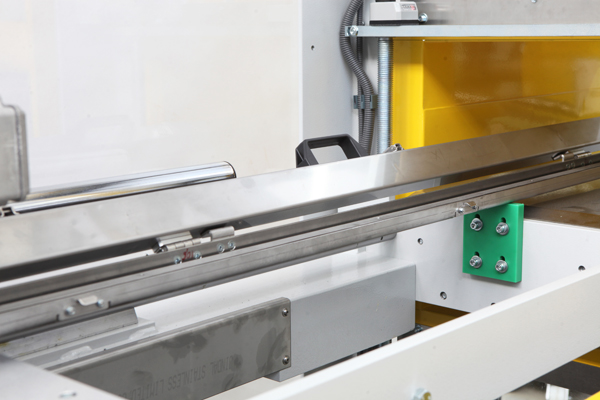

Einlaufseitige Profilfuehrung Doppel Trenneinheit
Hinged profile guide at infeed side Dual carriage cut-off saw

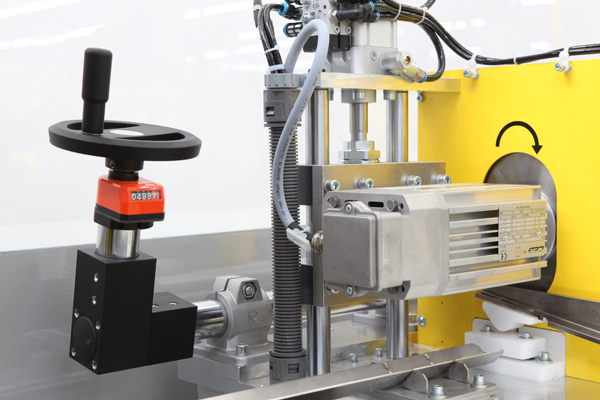

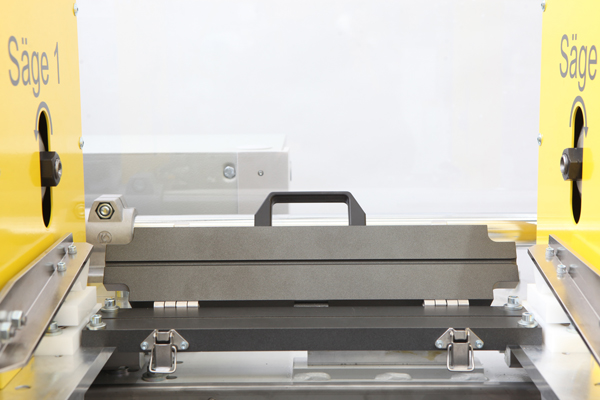

Profilfuehrung Aufklappbar Distanz Saegeschlitten
Hinged profile guide Distance adjustment for the saw carriages

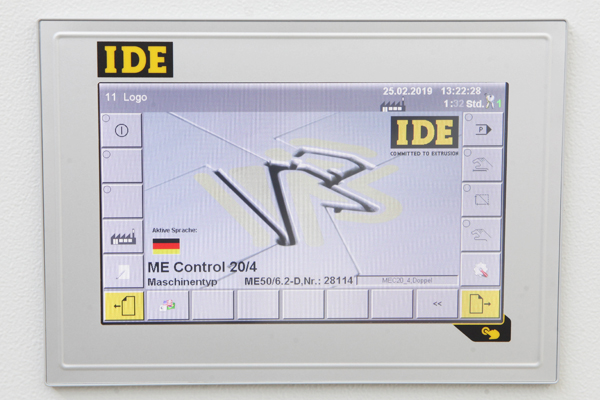

Steuerung Doppel Ablaengsaege

Controller ME Control 20/4
